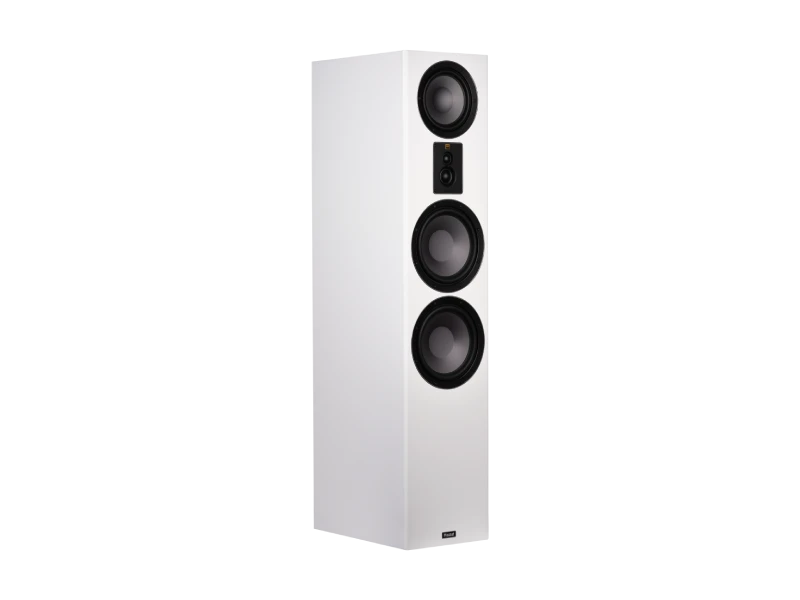

Magnat Signature 809 Floorstanding Speaker, Satin white, Single

Magnat Signature 809 Floorstanding Speaker, Satin white, Single

ONE RECEIVER. YOUR ENTIRE SYSTEM.

HIGH-END SOUND
FOR THE MOST DEMANDING EARS

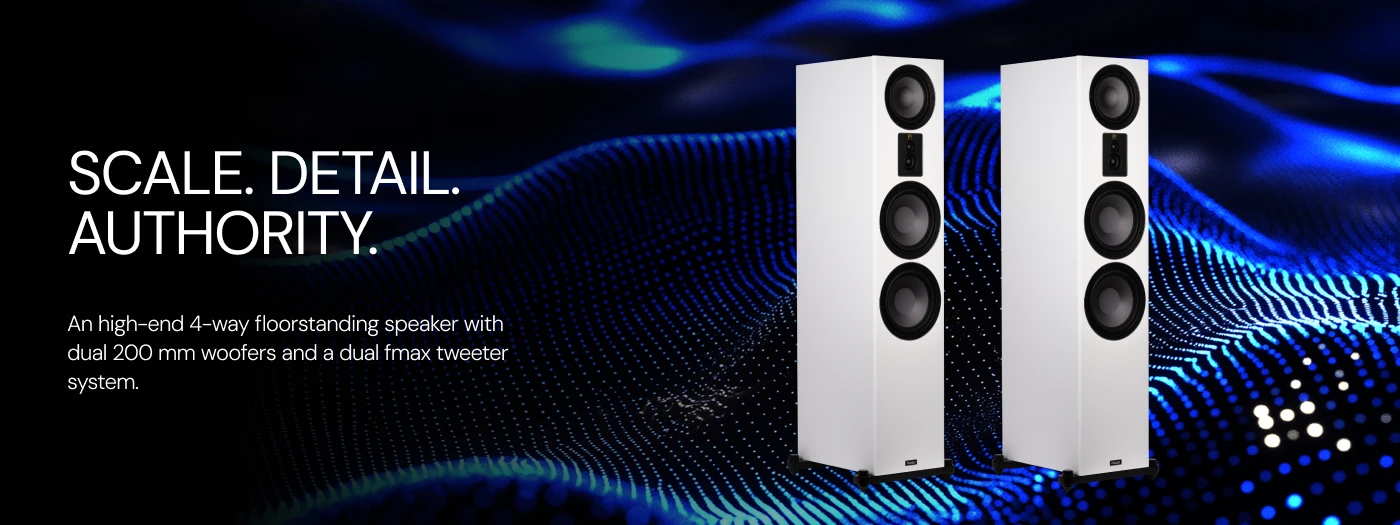

The Signature 809 is a passive 4-way floorstanding speaker designed to impress both acoustically and visually. A high-resolution tweeter system, dual bass drivers and a refined cabinet bring music and films to life with depth, detail and authority. Whether it is classical, jazz or an action soundtrack, the presentation stays effortless.

FOUR-WAY DESIGN
WITH DUAL 200 MM WOOFERS

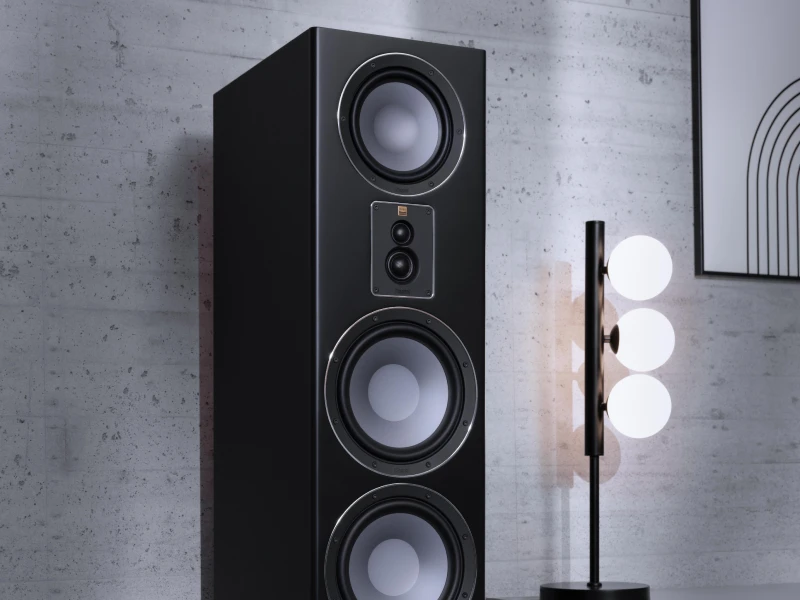

Two 200 mm woofers handle the bass, while a dedicated 170 mm driver covers the midrange. A 30 mm dome tweeter and 20 mm super tweeter reproduce the high frequencies. Splitting the work across four ways keeps every driver in its comfort zone. The payoff is deep, punchy bass together with an open, uncongested midrange.

DUAL fmax TWEETER
UP TO 50 kHz

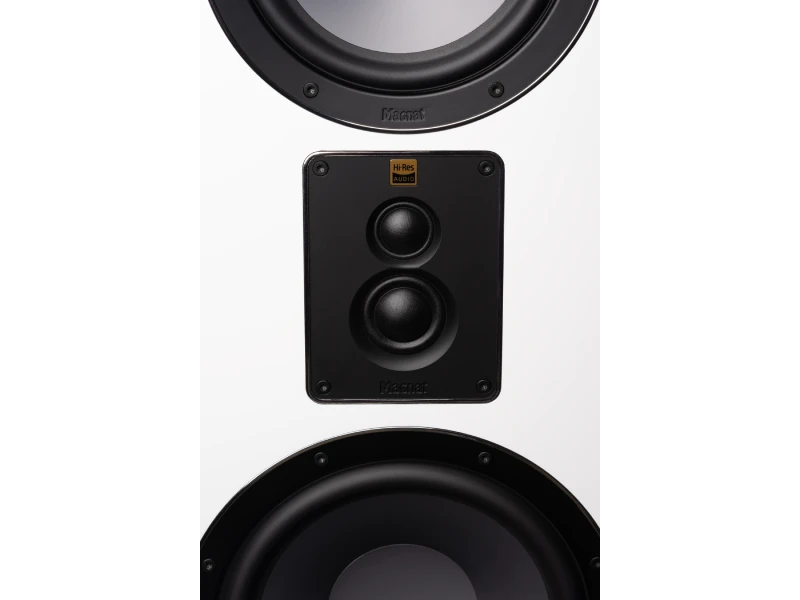

The tweeter system combines a high-resolution fmax dome tweeter with an additional super dome tweeter for response reaching 50 kHz. Powerful neodymium magnet systems deliver detail, clarity and dynamics with complete composure. A spherical waveguide widens dispersion for a balanced, natural soundstage.

FE-DYNAMICS
CERAMIC SANDWICH CONES

The bass and midrange drivers use advanced FE-Dynamics technology with a three-layer ceramic, aluminium, ceramic cone. This construction is very rigid and minimises unwanted resonance for pure, controlled sound. A ventilated voice coil dissipates heat so performance stays consistent at high levels.

DUAL AIRFLEX
BASS REFLEX PORTS

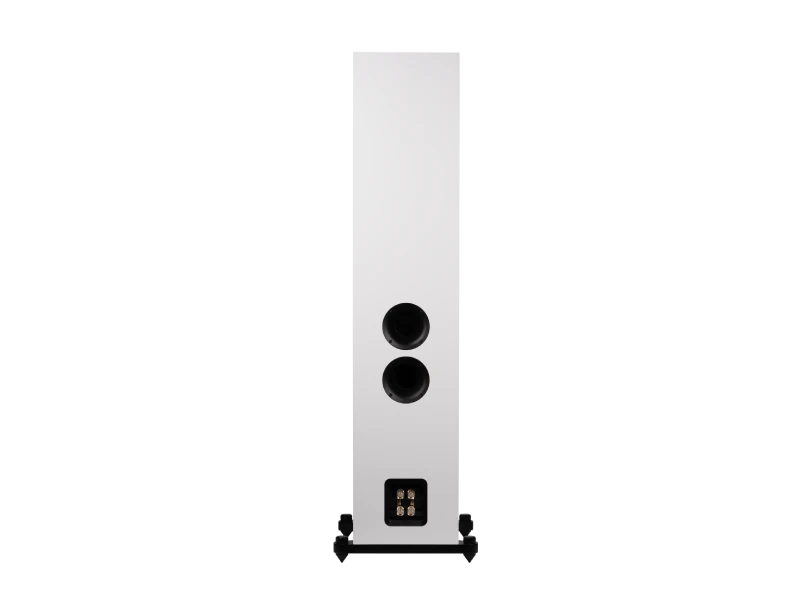

Two Airflex bass reflex ports extend low frequency output while keeping port noise to a minimum. Bass reaches down to around 22 Hz yet stays tight and rhythmically precise. Large-scale dynamics arrive without the bloat that often accompanies deep extension.

PREMIUM GERMAN AUDIO

24 dB CROSSOVER
WITH PREMIUM COMPONENTS

Acoustically optimised 24 dB filters built from high-quality components align the four ways accurately. Steep slopes keep each driver strictly within its intended range and reduce interference at the crossover points. The speaker behaves as a single coherent source across the whole spectrum.

KLIPPEL OPTIMISED
FOR PRECISION

Every component is optimised using Klippel laser measurement technology to minimise distortion. Driver behaviour is analysed under real working conditions, not just on paper. This delivers faithful reproduction and reliable performance over many years of use.

HIGH SENSITIVITY
GENEROUS POWER HANDLING

With 92 dB sensitivity and 250 watts RMS power handling, the Signature 809 turns amplifier power into music with ease. A nominal 4 ohm load in a 4 to 8 ohm range suits a wide choice of amplifiers from around 30 watts upward. Headroom stays available even in large rooms.

PREMIUM MATERIALS
TONE-ON-TONE FINISH

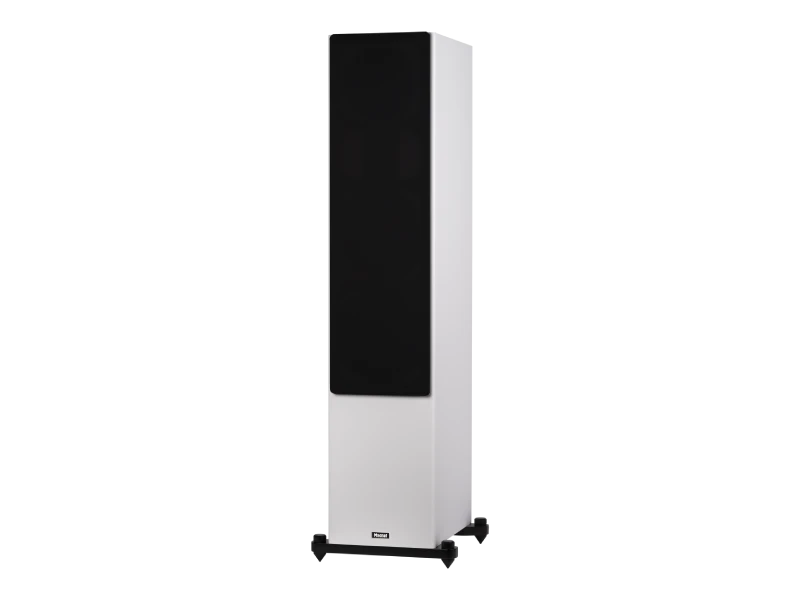

A satin matte front panel highlights the distinctive grey ceramic cones and carefully mounted drivers. The scratch-resistant vinyl cabinet and removable fabric grille combine durability with refined aesthetics. Height-adjustable metal spikes guarantee stable placement on any floor.

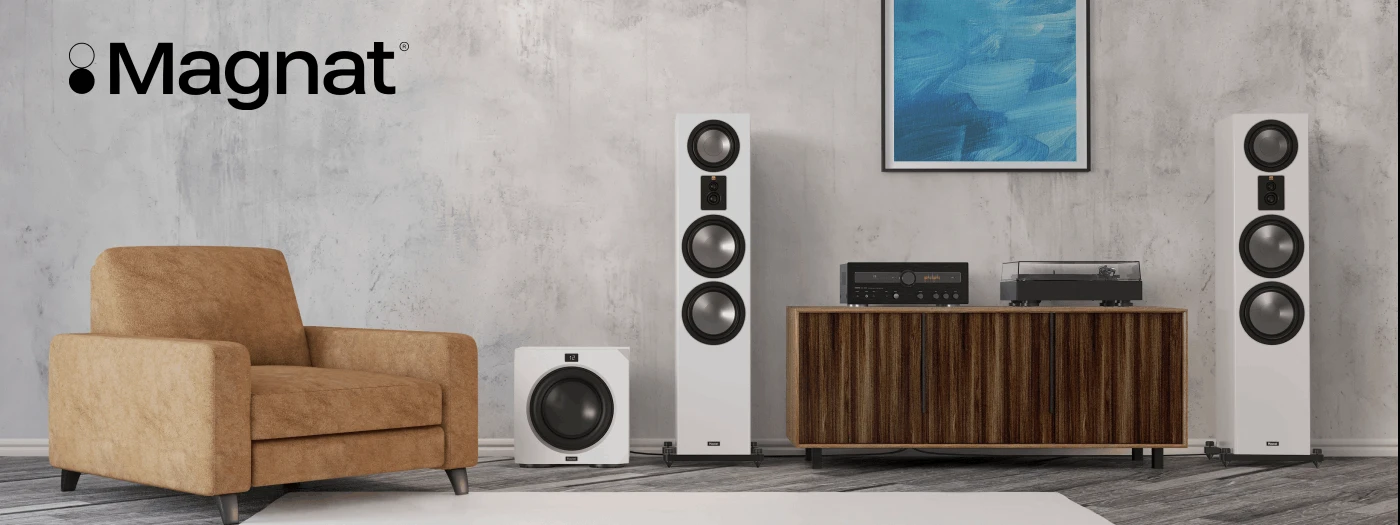

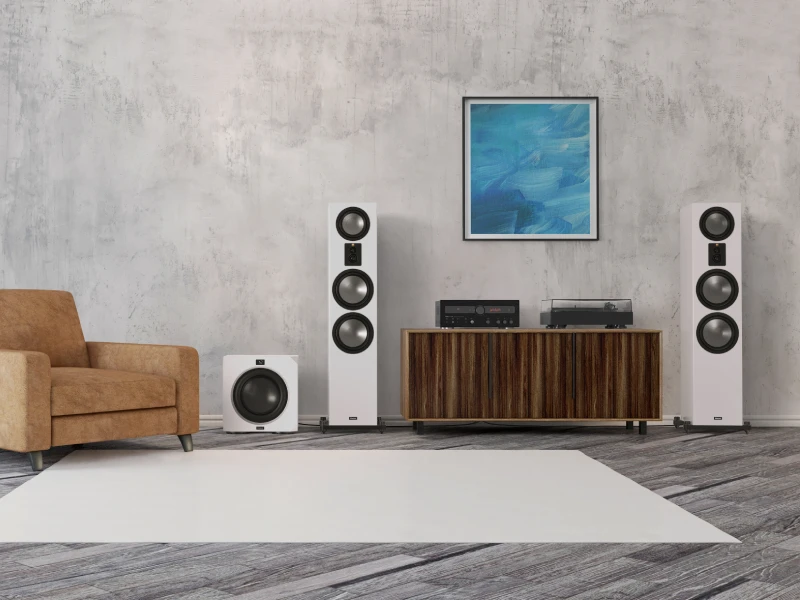

BUILT FOR STEREO
AND HOME CINEMA

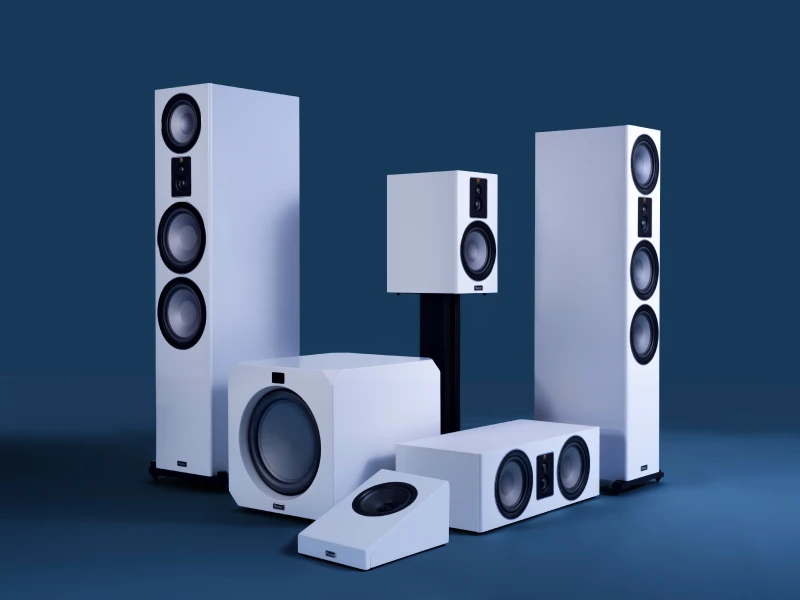

The Signature 809 integrates perfectly with the rest of the Signature range. Build a complete surround system with other Signature models, including the Center Pro II, ATM 202 Atmos speakers and Omega CS 12 subwoofer. German-developed, it pairs technical innovation with classic Magnat craftsmanship.

FOUR-WAY DESIGN. FULL-RANGE IMPACT.
